Solenoid Valve and Regualtors

Please click below picturer for Log in STC Valve website for detailed Solenoid valve information and CAD drawings.

STC Solenoid Air Valves Selection Guide
Directing Acting 2 & 3 Way Valves	3 Way Solenoid Valves	3 Way Double Solenoid Valves	4 Way Solenoid Valves		4 Way Double Solenoid Valves	3 Position 4 Way Solenoid Valves

Directing Acting 2 & 3 Way Valves	Manifold Valves	Stacking Valves	Air Piloted Valves	Solenoid Coils		Namur Valves

Please click below picturer for Log in STC Valve website for detailed Air Pressure Regulator information and CAD drawings.

A Series FRL Interchangeable with SMC - NAC SERIES FRL
FRL Components
Model	VHS2000-4000	AC1000-5000-XX	AC1010-5010-XX	AW1000-5000-XX	AR1000-5000-XX	AF1000-5000-XX	AL1000-5000-XX

Please click below picturer for Log in STC Valve website for detailed Process Valve information and CAD drawings.

STC Process Valves Selection Guide
General Purpose NC/No Zero Defferential Soleniod Valves	High Pressure & Temprature Valves	Stainless Steel NC/No Zero Defferential Soleniod Valves	Air Actuated Valves	Needle Valves

Please click below picturer for Log in STC Valve website for detailed Foot Valve information and CAD drawings.
Air Valves: manual valves and foot operated valves

1/4" NPT 3 to 4 Way Manual Air Valves
Model	FV220	FV320	FV420		4F210L		4F210	4F210G

Please click below picturer for Log in STC Valve website for detailed Pushin Fitting information and CAD drawings.

Composite Push-In Air Fitting Selection Guide

Bulkhead Connector	Branch Tee	BulkHead Union	Compact Male Connector	Control Valve M-Out M-In	Extended Elbow	Female Connector	Female Elbow Connector

Flow Valve	Male Angle	Male Connector	Male Elbow	Male Manifold	Run Tee	Universal Elbow	Y Connector

Cross Union	Elbow Union	Manifold Union	Reduced Branch	Reduced Union	Straight Union	Tee Union	Y Union

Elbow Reducer	Plug in Elbow	Plug	Stacking Elbow	Stem Coupler	Stem Reducer	TR (Tube Reducer)	Y Reducer

Please click below picturer for Log in STC Valve website for detailed Stainless Steel Fitting information and CAD drawings.

316 Stainless Steel Push In Fitting Selection Guide


Branch Tee	Female Connector	Hex Bushing	Male Connector	Male Elbow	Run Tee	Tube Adaptor

Barb Adaptor	Bulkhead Union	Elbow Union	Straight Union	Straight Union	Tube Reducer	Tee Union

	BRANCH TEE CONNECTOR SWIVEL	FEMALE CONNECTOR	MALE CONNECTOR	ELBOW CONNECTOR SWIVEL	RUN TEE CONNECTOR SWIVEL	Tube Adaptor

Please click below picturer for Log in STC Valve website for detailed Air Cylinder information and CAD drawings.

Aluminum & Stainless Steel Round Air Cylinders
Model	Type	Cylinder Picture	Bore Size (mm)	Stroke Length (mm)	Mounting Options	Magnetic Piston	Standard	Options

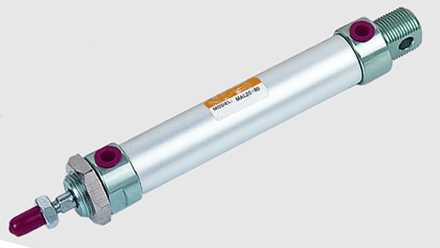

MAL	Round Cylinder		16 to 40	Max. 500mm	Bottom Mount, Front Mount, Rear Mount, Universal, Thread	Double Acting, Single Acting, Reverse Acting, Double Shaft	Buna-N Seal, Bumper	Magnetic Piston, EPDM, Viton Seals
MA	Stainless Steel Cylinder		16 to 40	Max. 500mm	Bottom Mount, Front Mount, Rear Mount, Universal, Thread	Double Acting, Single Acting, Reverse Acting	Buna-N Seal, Bumper	Magnetic Piston, EPDM, Viton Seals

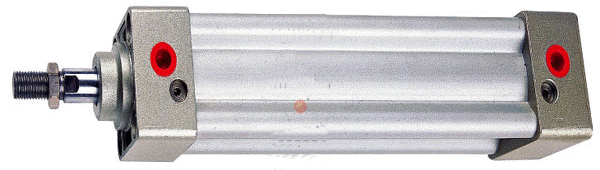

SC	Tie-Rod Cylinder		32 to 200	Max. 2000mm	Bottom Mount, Front Mount, Rear Mount, Universal	Double Acting, Single Acting, Reverse Acting	Buna-N Seal, Cushions	Magnetic Piston, EPDM, Viton Seals
SU	Enclosed Tie-Rod Cylinder		32 to100	Max. 2000mm	Bottom Mount, Front Mount, Rear Mount, Universal	Double Acting, Single Acting, Reverse Acting	Buna-N Seal, Cushions	Magnetic Piston, EPDM, Viton Seals
SDA	Compact Cylinder		12 to 100	Max. 130mm	Bottom Mount, Front Mount, Rear Mount, Universal	Double Acting, Single Acting, Reverse Acting	Buna-N Seal,	Magnetic Piston, EPDM, Viton Seals
AL-11R-MA	Reed Switch for MA cylinder			Reed and Hall Effect Switches	DC/AC 5 - 240V 100mA 10W	CE
AL-11R-MAL	Reed Switch for MAL cylinder
AL-11R-SC	Reed Switch for SC cylinder
AL-11R-SDA	Reed Switch for SDA cylinder

Please click below picturer for Log in STC Valve website for detailed Compression fitting information and CAD drawings.

Compression Fittings: Stainless Steel Compression Fittings

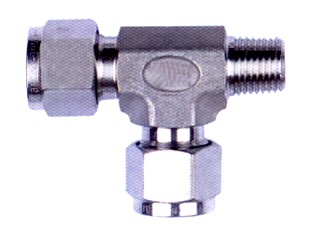

FCC Female Connector	FEC Female Elbow	MCC Male Connector	MEC Male Elbow	BTC Branch Tee	FBC Female Branch Tee	RTC Run Tee	FRC Female Run Tee

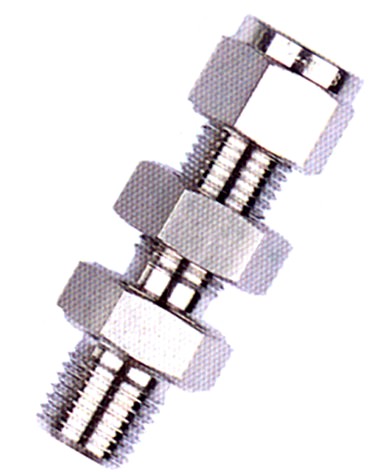

BUC Bulkhead Union	EUC Elbow Union	SUC Straight Union	TUC Tee Union	CUC Cross Union	RUC Reducing Union	MBC Male Bulkhead	BHC Bushing

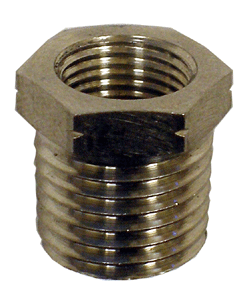

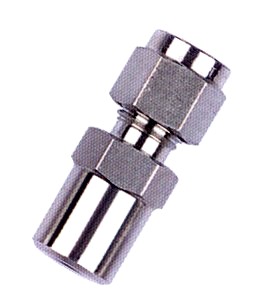

BFC Back Ferrule	FFC Front Ferrule	NTC Nut	PGC Plug	CPC Cap	TRC Tube Stem Reducer	BWC Butt Weld Connector

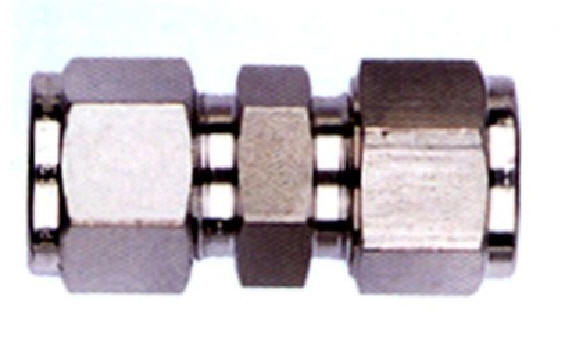

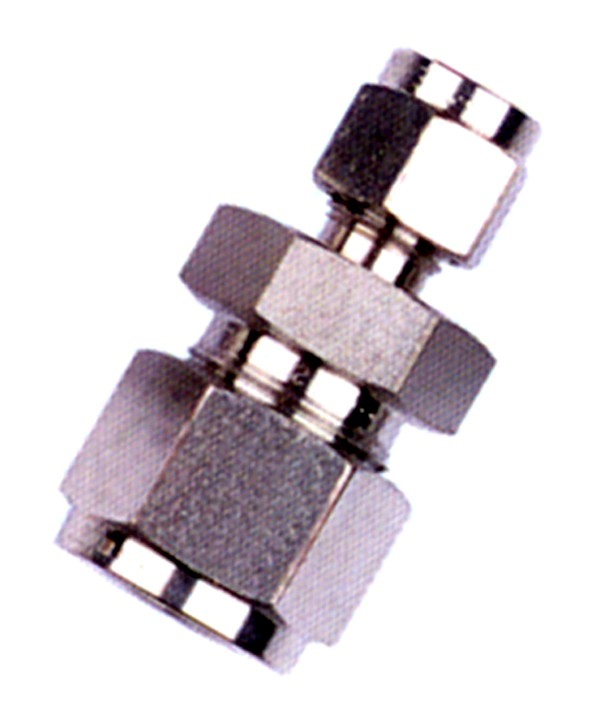

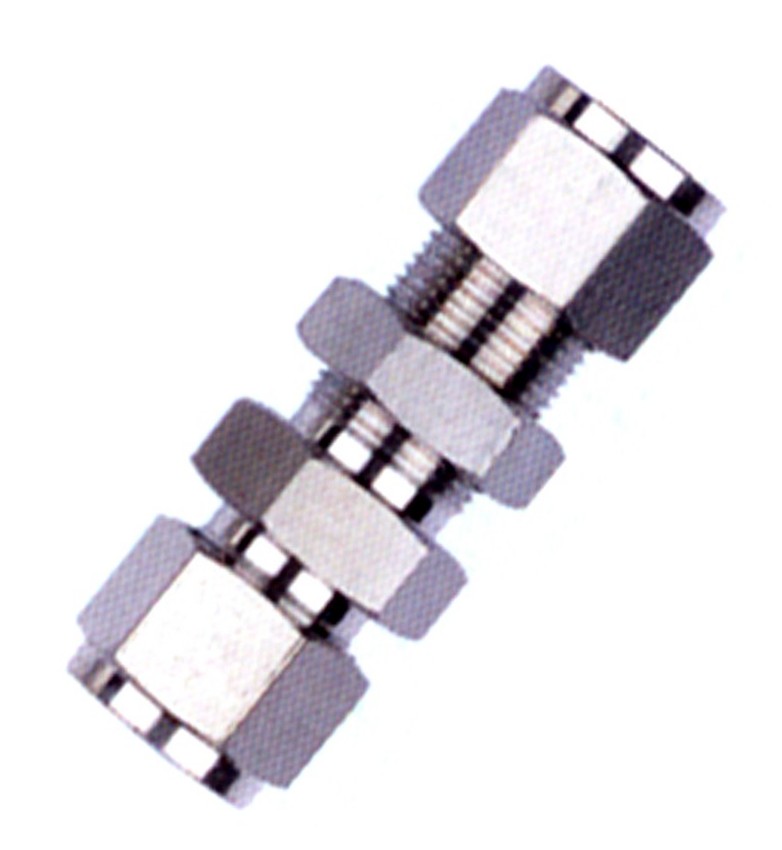

Bulkhead Union		Cross Union		Elbow Union		Straight Union		Tee Union		Reducing Union

For Technical Information: technical@vanguarduae.com
