FILTERS (For Oil, Gas, Power, Petrochemical & Processing Industries)

We are representing USA manufacutre in the field of Industrial filtration. Our supplier are manufacturer of high capacity filters and coalescers for process industries, particularly refineries, gas processing plants, gas turbines, pipelines, chemical and petrochemicals, food and beverages.

Filters and coalescers are designed and tested to perform well at high flow rates, tailor products for specific applications to optimize products for a wide variety of conditions such as viscosity, gelatinous particulate, chemical and temperature resistance, contaminant capacity, and efficiency needs. Chemflo Process Filtration work through a strong distribution network to provide systems and services including reducing supply chain costs.

Our manufacturer Main customers are Shell, Exxon, DuPont, BASF, Bayer Chemical and similar companies. In the Middle East, we do work with Aramco, Sabic, KOC, QatarGas, ADNOC/ADCO, and Shell in Oman. We manufacturer compete against Pall, PECO, 3M, Faudi, and Facet.

	Duplex Filter Housing Duplex Filter Housings are used for applications where the flow cannot be interrupted for bag changing. We offer our standard #2 size filter housings in duplex configuration in 316SS, Carbon Steel and Polypropylene with CPVC valves. Filter Housings are used to remove relatively small particles from a fluid stream (particle sizes from 0.00004" to 0.0314" (1 to 800 microns) from flow rates up to 9,000 GPM.
	________________________________________
	Simplex Filter Housing High quality, average industrial filter housing. Adequate for most industrial and commercial filtering applications, SL's are made with investment cast components and come with a 5 year warranty. Designed for low capacity filtration (up to 75 GPM) such as protecting spray nozzles, pumps and flow meters, or used prior to filling applications on bottling and canning lines
	________________________________________
	Filter Bag Filter bags for applications requiring fine filtration, designed to remove particle sizes from 0.00004" to 0.0314" (1 to 800 microns) from flow rates up to 9,000 GPM. We offer the single largest selection of filter bags available anywhere in the world. With more than (800) different filter bags made of (14) different
	________________________________________

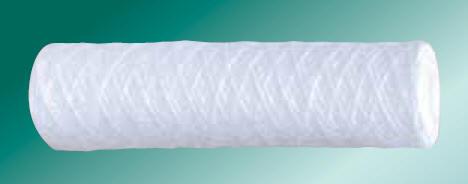

	Filter Cartrodges These universal filter cartridges may be used with our non-metallic cartridge filter housings or to retrofit to your existing filter. Listed below are wound and Pleated PPL filter cartridges in 7 different nominal retentions and 3 lengths.
	________________________________________
	Non-Metallic Cartridge Filter Housings All Plastic PVC or CPVC Cartridge Filter Housings are used to remove fine particles from process fluid. These housings are designed to use single, open ended cartridges 10", 20" or 30" in length. Cartridges must have a 1" ID and these housings do not accommodate stackable cartridges. Viton Seal is standard.
	________________________________________
	Multiple Bag Filter Housing We offer two basic multiple bag filter housing designs, one having a spring assisted cover lift mechanism and the other using an integral hand wheel davit. The spring assisted version is for lower flow rates (3 to 8 bags per vessel) and the "SE" version incorporates an added locking mechanism that enables faster bag access as well as a higher degree of safety
	________________________________________
	PVC Filter Housing Filter Housings have no metal components to rust or corrode. PL Filter housings are made from glass fiber reinforced polypropylene and they are designed to withstand a relatively high pressure and temperature combinations. For continuous flow applications we offer a duplex model that enables one side to accesses without shutting interrupting the flow.
	________________________________________
	Polyester filter bags Polyester filter bags provide depth filtration and have a high solids retention capacity. All of our Polyester filter bags have their outside surface singed or glazed to prevent fabric fibers from the bag getting into the clean, filtered process media. Polyester felt has a higher melting point than Polypropylene Felt making it ideal for hot oil and other applications up to 300° F. Polyester Felt is generally compatible with most fluids except those that are strongly alkaline or strongly acidic.
	________________________________________
	Conical / Temporary Strainer Polypropylene filter bags provide depth filtration and have a high solids retention capacity. All of our Polypropylene filter bags have their outside surface singed or glazed to prevent fabric fibers from the bag getting into the clean, filtered process media. Polypropylene Felt is generally compatible with most fluids except
